Apple II
Apple II - Apple II +

CPU 6502
CPU speed 1 Mhz
Motherboard RAM 48 k
Maximum RAM 64 k
ROM 12 k
OS Apple-DOS, CP/M-80 (with C/PM-card)
Languages IntegerBasic, Applesoft Basic, Fortran, Pascal, Cobol,
Data Path 8 bit
Bus Speed 1 Mhz
Slots 8 (proprietary)
Floppy maximum 8 external Floppydrives (5 1/4"), each 143 k
Display 6 color at 280x192, 4-bit color at 40x48
Sound Output built in speaker
Introduced June 1977
Terminated May 1983

retailed for $1,195)

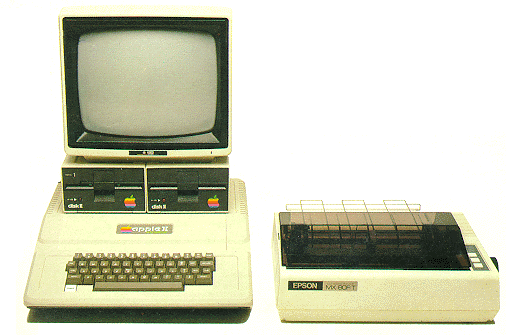

Built in 1977, the Apple II was based on Wozniak's Apple I design, but with several additions. The first was the design of a plastic case--a rarity at the time--which was painted beige. The second was the ability to display color graphics--a holy grail in the industry. The Apple II also included a larger ROM, more expandable RAM (4K to start), and 8 expansion slots. It had integer BASIC hard-coded on the ROM for easier programming, and included two game paddles and a demo cassette for $1,298. In early 1978 Apple also released a disk drive for the machine, one of the most inexpensive available. The Apple II remained on the Apple product list until 1980. It was also repackaged in a black case and sold to educational markets by Bell & Howell.

Apple II • 1 MHz
