| Logic Board |
Ports |
Power |
| Processor: |
68000, 8 MHz |
| PMMU: |
none |
| FPU: |
none |
| Data Path: |
16-bit, 8 MHz |
| L1 Cache: |
none |
| L2 Cache: |
none |
| 2nd Processor: |
none |
| Slots: |
none |
|
| USB: |
|
| ADB: |
none |
| Video: |
none |
| Floppy: |
DB-19 |
| SCSI: |
none |
| Geoports: |
none |
| Ethernet: |
none |
| FireWire: |
|
| Mic Type: |
none |
| Other Ports: |
Printer, Modem, Speaker,
|
|
| Max Watts: |
60 |
| Amps: |
0.50 |
| BTU per Hr: |
205.2 |
| Voltage: |
105-125 |
| Freq Range: |
50-60 Hz |
| Battery Type: |
4.5V alkaline, #523 |
|
| Memory |
Video Memory |
| Logic Board: |
0.125 MB |
| RAM Slots: |
0, n/a |
| Min - Max RAM: |
0.125MB - 0.125 MB |
| Min RAM Speed: |
n/a |
| RAM Sizes: |
n/a |
| Install in Groups of: |
n/a |
| Notes: |
This system has no built-in memory expansion, however third-party upgrades could take this system to 512K. |
|
| Resolution |
Video Memory
built-in CRT
(built in) |
| 512 x 384 |
1-bit |
| 640 x 400 |
n/a-bit |
| 640 x 480 |
n/a-bit |
| 800 x 600 |
n/a-bit |
| 832 x 624 |
n/a-bit |
| 1024 x 768 |
n/a-bit |
| 1152 x 870 |
n/a-bit |
| 1280 x 1024 |
n/a-bit |
Notes: Screen size is 512x342. |
| Physical |
Software |
Storage |
| Introduced: |
1/24/1984 |
| Discontinued: |
10/1/1985 |
| Form Factor: |
128 |
| Gestalt ID: |
1 |
| Weight (lbs): |
16.5 |
| Dimensions (in): |
13.6 H x 9.6 W x 10.9 D |
| Notes: |
Support Discontinued 9/1/98 |
|
| Addressing Modes: |
24-bit |
| Orig SSW: |
0.0 |
| Orig Enabler: |
none |
| ROM ID: |
$0000 |
| ROM Ver: |
n/a |
| ROM Size: |
64K |
| AppleTalk Ver: |
n/a |
Mac OS
Supported: |
<1.0
1.0
1.1
2.0
2.0.1
5.0
5.1
6.0
6.0.1
6.0.2
6.0.3
6.0.4
6.0.5
6.0.7
6.0.8
7.0.1P |
|
| Floppy Size: |
400K |
| Floppy Inject: |
manual |
| Min. Int HD Size: |
none |
| Int HD Interface: |
none |
| Orig CD Speed |
n/a |
| Int CD Support: |
|
|

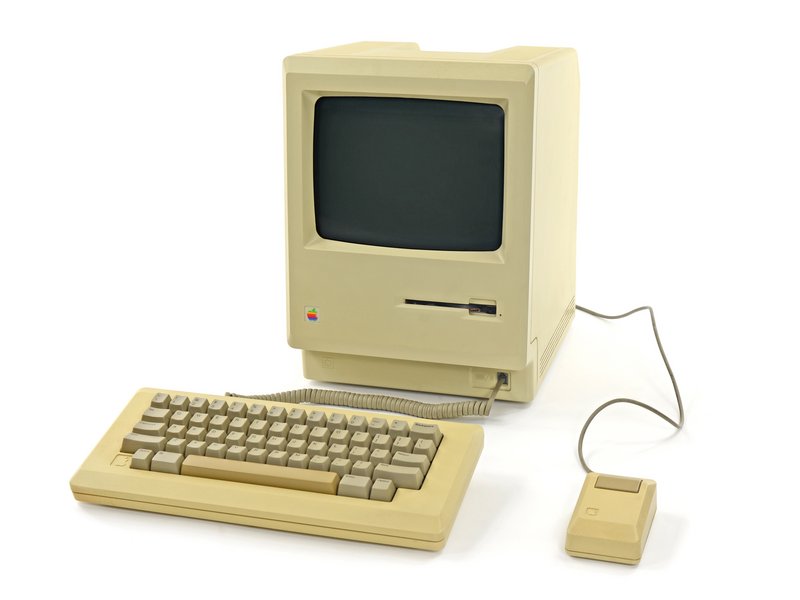

Macintosh 128 • 7.8 MHz
|
