| Logic Board |
Ports |
Power |
| Processor: |
604e, 200 MHz |
| PMMU: |
integrated |
| FPU: |
integrated |
| Data Path: |
64-bit, 50 MHz |
| L1 Cache: |
64K |
| L2 Cache: |
1MB |
| 2nd Processor: |
none |
| Slots: |
6 PCI |
|
| USB: |
|
| ADB: |
1 |
| Video: |
HDI-15 |
| Floppy: |
none |
| SCSI: |
DB-25 |
| Geoports: |
none |
| Ethernet: |
AAUI-15 |
| FireWire: |
|
| Mic Type: |
PlainTalk |
| Other Ports: |
Printer, Modem, Speaker,
|
|
| Max Watts: |
425 |
| Amps: |
7.00 |
| BTU per Hr: |
1453.5 |
| Voltage: |
100-240 |
| Freq Range: |
50-60 Hz |
| Battery Type: |
3.6V lithium |
| Soft Power: |
yes |
| Notes: |
Supports optional redundant hot-pluggable power supplies. |
|
| Memory |
Video Memory |
| Logic Board: |
none |
| RAM Slots: |
8, 168-pin DIMM |
| Min - Max RAM: |
48 MB - 512 MB |
| Min RAM Speed: |
60 ns |
| RAM Sizes: |
8, 16, 32, 64 MB |
| Install in Groups of: |
2 |
| Notes: |
Supports parity memory. |
|
| Resolution |
Video Memory
1MB DRAM
(built in) |
| 512 x 384 |
n/a-bit |
| 640 x 400 |
n/a-bit |
| 640 x 480 |
8-bit |
| 800 x 600 |
8-bit |
| 832 x 624 |
n/a-bit |
| 1024 x 768 |
8-bit |
| 1152 x 870 |
n/a-bit |
| 1280 x 1024 |
n/a-bit |
|
| Physical |
Software |
Storage |
| Introduced: |
9/14/1996 |
| Discontinued: |
n/a |
| Form Factor: |

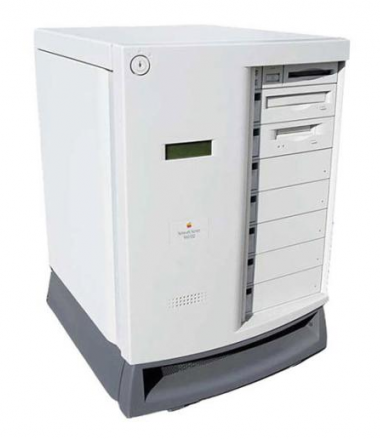

NW Server 700 |
| Gestalt ID: |
n/a |
| Weight (lbs): |
84 |
| Dimensions (in): |
24.5 H x 16.5 W x 18 D |
| Notes: |
The weight of this configuration may vary. |
|
| Addressing Modes: |
32-bit |
| Orig SSW: |
AIX 4.1.4 |
| Orig Enabler: |
n/a |
| ROM ID: |
n/a |
| ROM Ver: |
n/a |
| ROM Size: |
n/a |
| AppleTalk Ver: |
n/a |
Mac OS
Supported: |
|
| Notes: |
Ships with AIX for Apple Network Servers. |
|
| Floppy Size: |
1.44MB |
| Floppy Inject: |
manual |
| Min. Int HD Size: |
2x4GB |
| Int HD Interface: |
SCSI |
| Orig CD Speed |
8x |
| Int CD Support: |
yes |
| Notes: |
Supports optional redundant hot-pluggable disk drives. |
|
|
