| Logic Board |
Ports |
Power |
| Processor: |
604e, 350 MHz |
| PMMU: |
integrated |
| FPU: |
integrated |
| Data Path: |
64-bit, 100 MHz |
| L1 Cache: |
64K |
| L2 Cache: |
1MB |
| 2nd Processor: |
opt. PC Compatbility Card |
| Slots: |
6 PCI |
| Notes: |
One PCI slot occupied by video card. System supports 100 MHz cache bus, and 50 MHz system bus speeds. |
|
| USB: |
|
| ADB: |
1 |
| Video: |
DB-15 |
| Floppy: |
none |
| SCSI: |
DB-25 |
| Geoports: |
2 |
| Ethernet: |
AAUI, 10baseT |
| FireWire: |
|
| Mic Type: |
PlainTalk |
| Other Ports: |
Printer, Modem, Speaker,
|
|
| Max Watts: |
560 |
| Amps: |
3.00 |
| BTU per Hr: |
1915.2 |
| Voltage: |
100-125/200-240 |
| Freq Range: |
50-60 Hz |
| Battery Type: |
3.6V lithium |
| Soft Power: |
yes |
| Pass Through: |
yes |
|
| Memory |
Video Memory |
| Logic Board: |
none |
| RAM Slots: |
12, 168-pin DIMM |
| Min - Max RAM: |
64 MB - 768 MB |
| Min RAM Speed: |
70 ns |
| RAM Sizes: |
8, 16, 32, 64MB |
| Install in Groups of: |
1 |
| Notes: |
128MB DIMMs can be used, but have not been tested. Two identical DIMMs installed in corresponding slots may result in increased performance. |
|
| Resolution |
Video Memory
video card (8MB)
(n/a) |
| 512 x 384 |
24-bit |
| 640 x 400 |
n/a-bit |
| 640 x 480 |
24-bit |
| 800 x 600 |
24-bit |
| 832 x 624 |
24-bit |
| 1024 x 768 |
24-bit |
| 1152 x 870 |
24-bit |
| 1280 x 1024 |
24-bit |
Notes: A video card ships bundled with this system. The bundled video card is capable of resolutions up to 1600x1200. |
| Physical |
Software |
Storage |
| Introduced: |
8/5/1997 |
| Discontinued: |
n/a |
| Form Factor: |

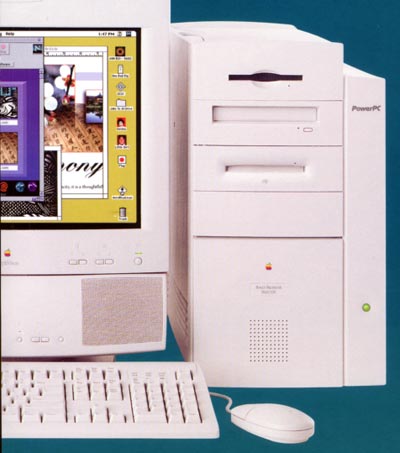

PM 9600 |
| Gestalt ID: |
105 |
| Weight (lbs): |
35 |
| Dimensions (in): |
17.3 H x 9.7 W x 17.3 D |
|
| Addressing Modes: |
32-bit |
| Orig SSW: |
7.6.1 |
| Orig Enabler: |
none |
| ROM ID: |
$077D |
| ROM Ver: |
n/a |
| ROM Size: |
4MB |
| AppleTalk Ver: |
60.1.1 |
Mac OS
Supported: |
7.6.1
8.0
8.1
8.5 |
|
| Floppy Size: |
1.44MB |
| Floppy Inject: |
manual |
| Min. Int HD Size: |
4GB |
| Int HD Interface: |
SCSI |
| Orig CD Speed |
24x |
| Int CD Support: |
yes |
| Notes: |
System ships with an Iomega Zip drive. |
|
|
