| Logic Board |
Ports |
Power |
| Processor: |
603e, 240 MHz |
| PMMU: |
integrated |
| FPU: |
integrated |
| Data Path: |
64-bit, 40 MHz |
| L1 Cache: |
32K |
| L2 Cache: |
256K |
| 2nd Processor: |
none |
| Slots: |
2 Type II PC Card (1 Type III) |
|
| USB: |
|
| ADB: |
1 |
| Video: |
HDI-15 |
| Floppy: |
none |
| SCSI: |
HDI-30 |
| Geoports: |
none |
| Ethernet: |
none |
| FireWire: |
|
| Mic Type: |
n/a |
| Other Ports: |
Printer, Speaker,
|
|
| Max Watts: |
45 |
| Amps: |
1.875 |
| BTU per Hr: |
153.9 |
| Voltage: |
100-220 |
| Freq Range: |
50-60 Hz |
| Battery Type: |
29 Wh Lithium Ion |
| Soft Power: |
yes |
|
| Memory |
Video Memory |
| Logic Board: |
16 MB |
| RAM Slots: |
1, SO-DIMM |
| Min - Max RAM: |
16 MB - 80 M B |
| Min RAM Speed: |
n/a |
| RAM Sizes: |
n/a |
| Install in Groups of: |
1 |
|
| Resolution |
Video Memory
built-in LCD screen
(built-in) |
| 512 x 384 |
n/a-bit |
| 640 x 400 |
n/a-bit |
| 640 x 480 |
n/a-bit |
| 800 x 600 |
16-bit |
| 832 x 624 |
n/a-bit |
| 1024 x 768 |
n/a-bit |
| 1152 x 870 |
n/a-bit |
| 1280 x 1024 |
n/a-bit |
|
| Physical |
Software |
Storage |
| Introduced: |
4/7/1998 |
| Discontinued: |
n/a |
| Form Factor: |

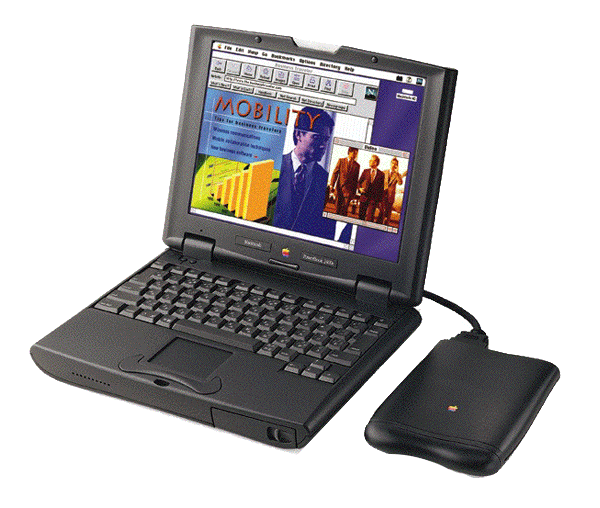

PowerBook 2400 |
| Gestalt ID: |
n/a |
| Weight (lbs): |
4.4 |
| Dimensions (in): |
1.9 H x 10.5 W x 10.5 D |
|
| Addressing Modes: |
32-bit |
| Orig SSW: |
8.1J |
| Orig Enabler: |
none |
| ROM ID: |
n/a |
| ROM Ver: |
n/a |
| ROM Size: |
4MB |
| AppleTalk Ver: |
n/a |
Mac OS
Supported: |
7.6
7.6.1
8.1 |
|
| Floppy Size: |
none |
| Floppy Inject: |
|
| Min. Int HD Size: |
2.0 GB |
| Int HD Interface: |
ATA |
| Orig CD Speed |
n/a |
| Int CD Support: |
|
|
|
