Xserve is a designed-from-the-ground-up server-class workhorse with the core features and capabilities you asked for.

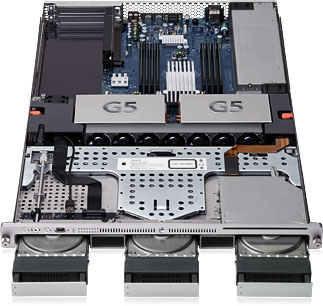

The 1U (1.75-inch) Xserve comes with your choice of single 2.0GHz or dual 2.3GHz G5 processors running at speeds of up to 35 gigaflops, a 1.15GHz frontside bus per processor for up to 9.2GBps throughput each, two full-length 64-bit PCI-X slots for up to 1GB/s throughput, and up to 16GB of 400MHz RAM with Error Correction Code (ECC). Plus three independent Serial ATA drive bays holding up to 1.5TB of internal disk space using hot-plug Apple Drive Modules, dual on-board Gigabit Ethernet and the complete suite of robust, standards-based network services in Mac OS X Server. Or choose the compute-optimised cluster node version for your high performance computing needs. With the money you save, you can add more Xserve systems for a more powerful cluster. |
|
| Hardware |
Configurations
Pris incl. moms |
Single Processor
DKK 24.999,00 |
Dual Processor
DKK 32.999,00 |
Cluster Node
DKK 24.999,00 |
| Processor |
Single 2.0GHz PowerPC G5 |
Dual 2.3GHz PowerPC G5 |
| Frontside bus |
1GHz |
1.15GHz per processor |
| On-chip L2 cache |
512K per processor |
| ECC memory |
1GB, 16GB Maximum |
512MB, 16GB Maximum |
| Hot-plug storage (1) |
One 80GB Serial ATA Apple Drive Module; support for up to 1.5TB (2) in three drive bays |
One drive bay with 80GB Serial ATA Apple Drive Module |
| Hardware RAID |
Optional |
N/A |
| Optical drive |
Slot-loading Combo (DVD-ROM/CD-RW) or optional SuperDrive(DVD-R/CD-RW) |
N/A |
| I/O connectivity |
Two
built-in Gigabit Ethernet interfaces (10/100/1000 BASE-T RJ-45); two
FireWire 800, one FireWire 400, two USB 2.0, one DB-9 (RS-232) serial
port |
| PCI slots |
Two full-length 64-bit PCI-X slots; supports 1 card at 133MHz or 2 at 100MHz |
| PCI expansion options (5) |
- Apple Fibre Channel PCI-X card (for connecting to Xserve RAID)
- Hardware RAID PCI card
- Gigabit Ethernet PCI-X card
- Dual channel 320 SCSI PCI-X card
- PCI video card with VGA connector
|
| Service and Support |
90 days of free telephone support and one-year limited warranty, optional AppleCare Support plans are available. |
| Also included |
Mounting
screws with M5 and 10/32-inch threads; caged nuts; cable management arm
for four-post racks; agency-approved 12-foot power cable |
| Software |
| Configurations |
Single Processor
M9743*/A |
Dual Processor
M9745*/A |
Cluster Node
M9742*/A |
| Mac OS X Server 10.4 |
Unlimited-Client Edition |
10-Client Edition |
| Included services |
- File
and printer sharing: Macintosh (AFP, PAP, IPP), Windows (SMB/CIFS,
IPP), UNIX and Linux (NFS, LPR/LPD), Internet (FTP, WebDAV)
- Directory services: Open Directory (OpenLDAP, Kerberos, SASL), NT Domain Services (Samba 3), Backup Domain Controller (BDC)
- Mail
services: Postfix (SMTP), Cyrus (IMPAP, POP); webmail (SquirrelMail),
mailing lists (Mailman), junk mail filtering (SpamAssassin), virus
detection and quarantine (ClamAV)
- Web hosting: Apache web server, JBoss application server (EJB), Apache Tomcat (JSPs, Servlets), MySQL
- Media streaming: QuickTime Streaming Server (H.264, 3GPP, MPEG-4, MP3, AAC, RTP/RTSP), QuickTime Broadcaster, QTSS Publisher
- Collaboration services: iChat Server, Weblog Server
- Desktop management: Workgroup Manager, NetBoot, Network Install, Software Update Server
- Network and security: DNS, DHCP, NAT, FireWall (IPFW2), VPN server (L2TP, PPTP), NTP
- Management tools: Server Monitor (for Xserve hardware monitoring), Server Admin, Secure Shell (SSH2), SNMPv3
- Distributed computing: Xgrid
|
| Physical Specifications |
| Configurations |
Single Processor
M9743*/A |
Dual Processor
M9745*/A |
Cluster Node
M9742*/A |
| Rack support |
- Fits
EIA-310-D-compliant, industry-standard 19-inch-wide racks, including
four-post racks (24 inches, 26 inches, and from 29 to 36 inches deep)
and two-post telco racks (center-mount brackets included)
- Cable management arm for four-post rack
- Front-to-back cooling for rack enclosure
|
| Electrical and environmental requirements |
- Line voltage: universal input (90V to 264V AC), power factor corrected
- Maximum input current: 4A (90V to 115V) or 2A (180V to 264V)
- Frequency: 47Hz to 63Hz, single phase
- Output power: 400W
- Operating temperature: 10° to 35° C (50° to 95° F)
- Storage temperature: -40° to 47° C (-40° to 116° F)
- Maximum altitude: 3,000 metres (10,000 feet)
- FCC Class A approved
|
| Size and weight |
- 4.4 cm (1.73 inches) high by 44.7 cm (17.6 inches) wide by 71.1 cm (28 inches) deep
- 15.1 kg (33 pounds); 16.6 kg (37 pounds) with three Apple Drive Modules
|
|
|
