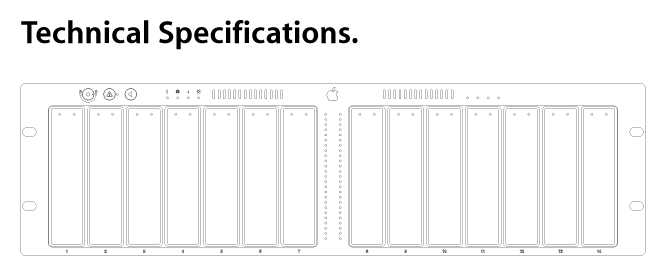

Techinical Specifications
Xserve RAID combines leading-edge storage technologies for superior capacity and data protection in a 3U rack-optimised enclosure.

Fast throughput and flexible configuration options make Xserve RAID ideal for businesses and institutions that demand high-availability, high-performance storage. With up to 7TB of capacity and innovative tools for remote management, this breakthrough RAID solution is easy to configure, easy to maintain and powerful enough to meet your organisation’s growing storage requirements.

The innovative Apple-designed Xserve RAID architecture combines affordable, high-capacity ATA drive technology with a dual 2Gb Fibre Channel host interface for fast, reliable data access. Each Apple Drive Module uses a dedicated drive channel, maximising the 400MB/s Fibre Channel host connection.

Configurations
X RAID
Priser incl. moms
1TB Xserve RAID
DKK 49.999,00
3.5TB Xserve RAID
DKK 70.490,00
7TB Xserve RAID
DKK 107.999,00
Ultra ATA/100 Apple Drive Modules (7200 rpm) Four 250GB drives Seven 500GB drives Fourteen 500GB drives
Controller cache 512MB per controller
Total available storage-RAID 0 (1) 1TB 3.55TB 7TB
Usable storage-RAID 1 (1) 500GB 1.5TB 3TB
Usable storage-RAID 3 and 5 (1) 750GB 3TB 6TB
On-drive cache 8MB per drive 8MB per drive 8MB per drive
Expansion Fourteen bays with independent 100MB/s ATA channels for up to 7TB of storage
Also included M5, M6 and 10/32-inch mounting screws; caged nuts; two agency-approved 3.66-metre (12-foot) power cables
Service and support
90 days of free telephone support and one-year limited warranty. Optional AppleCare Support plans are available.

Specifications
RAID controllers and cache memory
  • Dual independent controllers, each with environment management co-processor for out-of-band remote management and monitoring
  • 512MB of cache per controller (1GB total)
  • Cache Backup Battery Modules (sold separately) for over 72 hours of memory protection
RAID operation
  • Support for RAID levels: 0, 1, 3, 5, 0+1, 10, 30, 50 (10, 30 and 50 require host-based software RAID)
  • Support for multiple RAID sets, multiple hosts and LUN masking and mapping
  • Background RAID set creation; automatic variable background rebuilding; online expansion; LUN slicing; global drive hot sparing (per RAID controller)(2)
Fibre Channel storage-to-host connection
  • Dual 2Gb Fibre Channel ports (SFP), 200MB/s throughput per channel with guaranteed delivery (400MB/s full duplex) (3)
  • Host connectivity using 2Gb Apple Fibre Channel PCI-X Card or Apple Fibre Channel PCI Express Card (cards sold separately) or compatible third-party PCI card
  • Support for point-to-point, loop and fabric (switched) topologies
  • Dual 10/100BASE-T Ethernet for remote management
Apple Fibre Channel PCI Express Card (sold separately)
  • Dual-channel 2Gb Fibre Channel PCI Express Bus Adaptor
  • Runs at full bandwidth in a four-lane or eight-lane PCI Express slot on the new Power Mac G5; not compatible with PCI or PCI-X
  • Two 2.9-metre Fibre Channel copper cables with embedded SFP transceivers; compatible with SFP fibre-optic cables and tranceivers
Apple Fibre Channel PCI-X Card (sold separately)
  • 64-bit, 133MHz card with two SFP 2Gb Fibre Channel ports; compatible with 32-bit, 66MHz PCI slots and 64-bit, 100MHz or 133MHz PCI-X slots
  • Two 2.9-meter Fibre Channel copper cables with embedded SFP transceivers; compatible with SFP fibre-optic cables and tranceivers
Supported SFP Types

Short-Haul Transceiver (supports up to 500m with 50/125 m MMF)

  • Finisar FTRJ-8519-P1BNL
  • Pico Light PL-XPL-VE-S24-11
  • Pico Light PL-XPL-VC-S23-11
  • JDS Uniphase JSM-21S0AA1
  • JDS Uniphase JSP-21S0AA1

Long-Haul Transceiver (supports up to 10km with 9/125 m SMF)

  • Finisar FTRJ-1319-P1BTL
Cooling
  • Redundant hot-swap cooling modules with self-regulating speeds and front-to-back cooling
  • Environmental monitoring system for automatically maintaining optimal ambient temperature
Electrical requirements
  • Redundant load-sharing hot-swap power supplies (450W); universal input (100V to 240V AC), power factor corrected
  • Maximum input current: 7.6A (100V to 127V) or 3.6A (200V to 240V)
  • Power usage: 300W typical continuous power, 400W maximum continuous power
  • Dual DB-9 serial ports for UPS systems
  • Frequency: 50Hz to 60Hz, single phase
Environmental requirements
  • Operating temperature: 10° to 35° C (50° to 95° F)
  • Storage temperature: -40° to 47° C ( -40° to 116° F)
  • Relative humidity: 5% to 95% non-condensing
  • Maximum thermal output: 1365 BTUs per hour
  • Maximum altitude: 3,000 metres (10,000 feet)
  • FCC Class A approved
Size and weight
  • 3U rack-optimised: 13.3 cm (5.25 inches) high by 43.2 cm (17 inches) wide by 46.7 cm (18.4 inches) deep
  • Fits EIA-310-D-compliant industry-standard 19-inch-wide four-post racks from 24 to 36 inches deep; deeper racks require third-party extender
  • 27-45 kg (60-100 pounds), depending on configuration (4)

(1) For hard drive capacity measurements, 1GB = 1 billion bytes; actual formatted capacity less.
(2) Automatic rebuild requires a designated hot spare, not available for RAID level 0.
(3) Actual rates will vary depending on configuration and RAID level.
(4) Weight varies by configuration and manufacturing process.

Product specifications are subject to change without notice.
