Xserve


Start building your Xserve with our suggested configuration:

  • 2.8GHz Quad-Core Intel Xeon ??Harpertownâ?? processor
  • 1600MHz frontside bus and 12MB L2 cache
  • 2GB memory (800MHz DDR2 fully buffered DIMM ECC)
  • 80GB 7200-rpm Serial ATA hard drive1
  • Built-in graphics with 64MB RAM
  • Mac OS X Server v10.5 Leopard Unlimited-Client Edition
DKK 22.199,00 incl. moms



Xserve

Twice the cores. Twice the power. The 8-core Xserve.

8-core Intel Xeon up to 3.0GHz

8-core Intel Xeon up to 3.0GHz

Add phenomenal performance to your server rack with the 8-core Xserve. Its two 64-bit Quad-Core Intel Xeon processors ?? at speeds up to 3.0GHz ?? and new hardware architecture combine to deliver up to twice the performance of the previous Xserve.2

Up to 2x faster

Up to 2x faster than Quad-Core Xserve

8-Core 3.0GHz Benchmark performance

Quad-Core 3.0GHz Xserve


Up to 3TB storage in a 1U package

Up to 3TB storage in a 1U package

Configure your Xserve with up to 3TB of storage in three hard drive bays. Choose massive 1TB SATA drives or 15,000-rpm SAS drives for the highest performance available today.


Optional hardware RAID

Optional hardware RAID

For enhanced data protection and performance up to 325MB/s3, choose the optional Xserve RAID Card, featuring 256MB of RAID cache and hardware RAID levels 0, 1, and 5. It includes a 72-hour cache battery backup for added protection and doesn’t use either of the PCI Express 2.0 slots.


Up to 32GB of memory

Up to 32GB of memory

Xserve uses the fully buffered (FB-DIMM) memory standard, which allows for more capacity, faster speeds, and greater reliability than previous technologies. You can install up to 32GB of 800MHz DDR2 ECC memory with high-availability features such as ECC on-demand scrubbing and embedded diagnostics capabilities.


Internal graphics

Internal graphics

Xserve includes an internal graphics card with the ability to drive a display without using a valuable expansion slot. Its mini-DVI output can drive a DVI or VGA display.


Unlimited-client Leopard Server

Unlimited-client Leopard Server

Your Xserve ships with Mac OS X Server v10.5 Leopard, which works with an unlimited number of Mac, Windows, Linux, and UNIX clients. Powerful client management services and new Leopard Server features make Xserve the ultimate server for Mac and mixed-platform workgroups.


Redundant power supply option

Redundant power supply option

For extra peace of mind, you can add a second hot-swappable power supply and connect each to a separate UPS or power circuit. In case of an outage in one circuit, the second supply takes over without a loss in service.

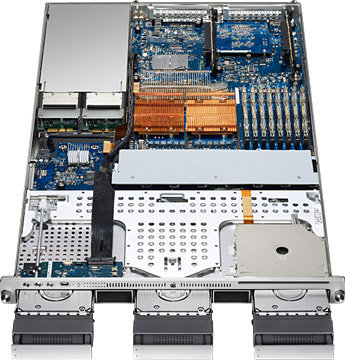

Advanced hardware architecture

Whether you choose the quad-core or 8-core Xserve, all models include 1600MHz dual independent frontside buses and 12MB of L2 cache per processor. And two open PCI Express 2.0 expansion slots ?? one x16 wide and one x8 wide ?? offer up to four times the bandwidth of the previous Xserve.

Lights-out management

Control your Xserve without ever trekking to the server rack. Power it on or off, reboot, monitor, and more from a remote Mac connected via Ethernet ?? no extra hardware or software required.




What's in the Box

  • Xserve
  • Rack mounting hardware
  • 6' and 10" power cords
  • Mini-DVI to VGA adapter
  • Mac OS X Server 10.5 Install DVD
  • Administration Tools CD
  • Printed and electronic documentation

Configuration Options

  • Two quad-core processors (8-core) up to 3.0GHz
  • Memory up to 32GB
  • Hard drive storage up to 3TB
  • Internal hardware RAID card
  • Dual-channel Gigabit Ethernet
  • Dual-channel Ultra320 SCSI card
  • Dual- or quad-channel 4Gb Fibre Channel card
  • Dual power supplies

Included Software

Mac OS X Server v10.5 Leopard Unlimited-Client Edition

Leopard Server offers hundreds of breakthrough innovations and applications, including:
  • Server Preferences
  • iCal Server
  • Wiki Server
  • Spotlight Server
  • Podcast Producer

Server Monitor monitoring software

  1. (1) 1GB = 1 billion bytes; actual formatted capacity less. (2) All testing conducted by Apple in December 2007 using preproduction 3.0GHz 8-core Xserve units (2 chips, 8 cores, 4 cores per chip, 3.0GHz) and shipping 3.0GHz quad-core Xserve units (2 chips, 4 cores, 2 cores per chip, 3.0GHz). Performance tests are conducted using specific computer systems and reflect the approximate performance of Xserve. For STREAM: All systems were configured with 8GB of RAM. Results are based on the STREAM v. 5.6 benchmark (www.cs.virginia.edu/stream/ref.html) using OMP support for multiprocessor-compiled builds. For SPECjbb: 8-core Xserve: SPECjbb2005 bops = 103,886, SPECjbb2005 bops/JVM = 25,972; quad-core Xserve: SPECjbb2005 bops = 47,195, SPECjbb2005 bops/JVM = 23,598. SPEC and SPECjbb2005 are trademarks of the Standard Performance Evaluation Corporation (SPEC); see www.spec.org for more information. Competitive benchmark results stated above reflect internal Apple testing and were submitted to SPEC in December 2007. For the latest SPECjbb2005 benchmark results, visit www.spec.org/osg/jbb2005. (3)Testing conducted by Apple in December 2007 using preproduction 3.0GHz 8-core Xeon-based Xserve units configured with Xserve RAID Card. Testing conducted using Iometer 2006.07.27 with a 30-second ramp-up, 5-minute run duration, 512KB request size, 4 outstanding IOs, and using non-OS-cached reads and writes. System configured with the operating system and test volume on a single RAID volume. Performance tests are conducted using specific computer systems and reflect the approximate performance of Xserve RAID Card.
