Technical Specifications

Apple Remote

In the Box

  • iMac
  • Apple Keyboard
  • Mighty Mouse
  • Apple Remote
  • Power cord
  • Install/restore DVDs
  • Printed and electronic documentation

Processor and memory

  • 1.83GHz or 2GHz Intel Core Duo processor
  • 2MB shared L2 cache at full processor speed
  • 667MHz system bus
  • 512MB of PC2-5300 (667MHz) DDR2 SDRAM expandable to 2GB


  • 160 or 250GB 7200-rpm Serial ATA hard disk drive
  • 8x SuperDrive (DVD+R DL/DVD±RW/CD-RW) installed; writes DVD+R DL discs at up to 2.4x speed, writes DVD-R and DVD+R discs at up to 8x speed, writes DVD-RW and DVD+RW discs at up to 4x speed, reads DVDs at up to 8x speed, writes CD-R discs at up to 24x speed, writes CD-RW discs at up to 8x speed, reads CDs at up to 24x speed
USB Modem


  • Built-in 54-Mbps AirPort Extreme Card (802.11g standard)
  • Built-in Bluetooth 2.0+EDR (Enhanced Data Rate) module
  • Built-in 10/100/1000 Gigabit BASE-T Ethernet (RJ-45 connector)
  • Works with 56K V.92 Apple USB Modem (sold separately)


  • Built-in 17-inch (viewable) widescreen or 20-inch (viewable) widescreen TFT active-matrix liquid crystal display
  • Millions of colours at all resolutions
  • Typical viewing angle:
    • 17-inch model
      • 140° horizontal
      • 120° vertical
    • 20-inch model
      • 170° horizontal
      • 170° vertical
  • Typical brightness: 250 cd/m (17-inch model); 280 cd/m (20-inch model)
  • Typical contrast ratio: 500:1 (17-inch model); 800:1 (20-inch model)
ATI Radeon X1600 with 128MB GDDR3 memory

Graphics and Video

  • ATI Radeon X1600 graphics processor using PCI Express
  • 128MB of GDDR3 video memory
  • Mini-DVI output port with support for DVI, VGA, S-video and composite video connections via adaptor2
  • iSight
  • Built-in iSight camera
  • Support for external display in extended desktop and video mirroring modes
    • Digital resolutions up to 1920 x 1200
    • Analog resolutions up to 2045 x 1536

Electrical and environmental requirements

  • Meets ENERGY STAR requirements
  • Line voltage: 100-240V AC
  • Power cable
  • Frequency: 50Hz to 60Hz, single phase
  • Maximum continuous power: 180W
  • Operating temperature: 10° to 35° C (50° to 95° F)
  • Storage temperature: -40° to 85° C (-40° to 185° F)
  • Relative humidity: 5% to 95% non-condensing
  • Maximum altitude: 3,000 m (10,000 feet)

Size and weight (17-inch)

  • Height: 43.0 cm (16.9 inches)
  • Width: 42.6 cm (16.8 inches)
  • Depth: 17.3 cm (6.8 inches)
  • Weight: 7 kg (15.5 pounds) 4

Size and weight (20-inch)

  • Height: 47.2 cm (18.6 inches)
  • Width: 49.3 cm (19.4 inches)
  • Depth: 18.9 cm (7.4 inches)
  • Weight: 10 kg (22 pounds) 4

Peripheral connections

  • Two FireWire 400 ports; 8 watts shared
  • Total of five USB ports: three USB 2.0 ports (up to 480 Mbps) on computer, two USB 1.1 ports on keyboard


  • Built-in stereo speakers
  • Internal 12-watt digital amplifier
  • Headphone/optical digital audio output
  • Audio line input
  • Built-in microphone


  • Mac OS X v10.4 Tiger (includes Spotlight, Dashboard, Mail, iChat AV, Safari, Address Book, QuickTime, iCal, DVD Player, Xcode Developer Tools)
  • iLife ’06 (includes iTunes, iPhoto, iMovie HD, iDVD, iWeb, GarageBand), Microsoft Office 2004 for Mac Test Drive, iWork (30-day trial), Big Bang Board Games, Comic Life, OmniOutliner and Apple Hardware Test
  • Front Row
  • Photo Booth


  17-inch iMac 20-inch iMac
Processor 1.83GHz Intel Core Duo 2.0GHz Intel Core Duo
L2 Cache 2MB Shared
System bus 667MHz
Memory 512MB of 667MHz DDR2 SDRAM (PC2-5300), supports up to 2GB
Hard drive 160GB Serial ATA 1; 7200 rpm 250GB Serial ATA 1; 7200 rpm
Optical drive Slot-loading 8x SuperDrive with 2.4x Dual Layer burn (DVD+R DL/DVD±RW/CD-RW)
Display 17-inch (viewable) widescreen TFT active-matrix LCD, 1440 x 900 pixels, millions of colours 20-inch (viewable) widescreen TFT active-matrix LCD, 1680 x 1050 pixels, millions of colours
Video camera Built-in iSight
Graphics ATI Radeon X1600 with 128MB GDDR3 memory ATI Radeon X1600 with 128MB GDDR3 memory, with upgrade option to 256MB GDDR3 SDRAM
Ports Two FireWire 400 ports; three USB 2.0 ports, two USB 1.1 ports (on keyboard); mini-DVI port; DVI output 2; VGA output 2; S-video and composite video output 2
Audio Built-in stereo speakers, built-in microphone, headphone/optical digital audio output, audio line in
Networking Built-in 10/100/1000BASE-T (Gigabit)
Wireless Built-in 54 Mbps AirPort Extreme Wi-Fi (802.11g) 3; built-in Bluetooth 2.0+EDR (Enhanced Data Rate) module.
Hardware accessories Apple Remote, Apple Keyboard, Mighty Mouse
incl. moms
DKK 10.799,00 DKK 13.999,00

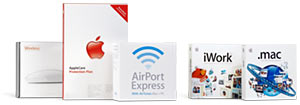

Configure to Order
  • Graphics memory upgrade to ATI Radeon X1600 with 256MB VRAM (20" only)
  • 250GB hard drive (17" upgrade)
  • 500GB hard drive (20" upgrade)
  • Apple mini-DVI to DVI Adaptor
  • Apple mini-DVI to VGA Adaptor
  • Apple mini-DVI to Video Adaptor
  • Apple FireWire Cable
  • AppleCare Protection Plan
  • AirPort Express Base Station
  • AirPort Extreme Base Station
  • Apple Wireless Keyboard
  • Apple Wireless Mouse
  • Apple USB Modem
  • Apple 8x DVD-R Media Kit
  • .Mac Subscription
  • iWork
  1. 1GB = 1 billion bytes; actual formatted capacity less.
  2. Requires adaptor, sold separately.
  3. Wireless Internet access requires AirPort Express or AirPort Extreme Base Station and Internet access (fees may apply). Some ISPs are not currently compatible with AirPort.
  4. Weight varies by configuration and manufacturing process.
  5. Intel and Intel Core are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
. . .
