Xserve G5 Cluster node configuration Apple Server Solutions
Xserve G5 Xserve RAID Mac OS X Server

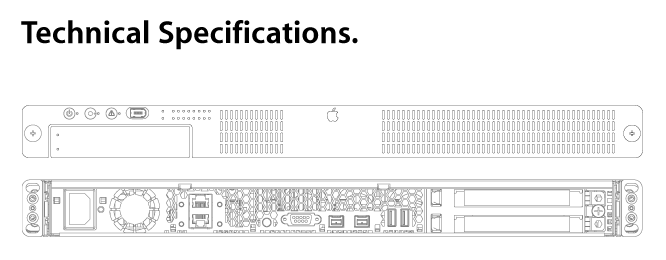

Technical Specifications.
Xserve G5 cluster node configuration was designed from the ground up as a computing powerhouse. And the hard work of countless Apple engineers has paid off brilliantly.

Xserve G5 offers you the best performance for your money. One dual processor node can execute over 30 billion single precision floating-point operations per second, or 30 gigaflops per U. That means a 42U rack filled with Xserve G5 systems can offer over 1.26 teraflops of processing power. Best of all, by eliminating the cost of unneeded components, Apple has made this high-density 1U system extremely affordable.
Hardware
Configurations Xserve G5 Cluster Node
Price $2999
Processor Dual 2.0GHz PowerPC G5
On-chip L2 cache 512K per processor
Frontside Bus 1GHz per processor
Main memory 512MB, 8GB Maximum
Storage One drive bay with 80GB Serial ATA Apple Drive Module
I/O connectivity Two built-in Gigabit Ethernet interfaces (10/100/1000 BASE-T RJ-45); two FireWire 800, one FireWire 400, two USB 2.0, one DB-9 (RS-232) serial port
PCI slots Two full-length 64-bit, 133MHz PCI-X slots on independent buses
Service and Support 90 days of free telephone support and one-year limited warranty, optional AppleCare Support plans are available.
Also included Mounting screws with M5 and 10/32-inch threads; caged nuts; cable management arm for four-post racks; agency-approved 12-foot power

Software
Configurations Xserve G5 Cluster Node
Mac OS X Server 10.3 10-Client Edition
Included services
  • File and printer sharing: Macintosh (AFP, PAP), Windows (SMB/CIFS), UNIX and Linux (NFS, LPR/LPD), Internet (FTP, WebDAV)
  • Directory services: Open Directory (OpenLDAP, Kerberos, SASL), NT Domain Controller (Samba 3)
  • Web technologies: Apache web server, JBoss application server (EJB), Apache Tomcat (JSPs, Servlets), MySQL
  • Media streaming: QuickTime Streaming Server (MPEG-4, MP3, AAC, RTP/RTSP), QuickTime Broadcaster
  • Mail services: Postfix (SMTP), Cyrus (IMPAP, POP); webmail (SquirrelMail); mailing lists (Mailman)
  • Network and security: DNS, DHCP, NAT, FireWall (IPFW), VPN server (L2TP, PPTP)
  • System imaging: NetBoot, Network Install
  • Management tools: Server Monitor (for Xserve hardware monitoring), Server Admin, Workgroup Manager, Secure Shell (SSH2), SNMPv3

Physical Specifications
Configurations Xserve G5 Cluster Node
Rack support
  • Fits EIA-310-D-compliant, industry-standard 19-inch-wide racks, including four-post racks (24 inches, 26 inches, and from 29 to 36 inches deep) and two-post telco racks (center-mount brackets included)
  • Cable management arm for four-post rack
  • Front-to-back cooling for rack enclosure
Electrical and environmental requirements
  • Line voltage: universal input (90V to 264V AC), power factor corrected
  • Maximum input current: 5.5A (90V to 132V) or 2.75A (180V to 264V)
  • Frequency: 47Hz to 63Hz, single phase
  • Output power: 400W
  • Operating temperature: 50° to 95° F (10° to 35° C)
  • Storage temperature: -40° to 116° F (-40° to 47° C)
  • Maximum altitude: 10,000 feet
  • FCC Class A approved
Size and weight
  • 1.73 inches (4.4 cm) high by 17.6 inches (44.7 cm) wide by 28 inches (71.1 cm) deep
  • 33 pounds (15.1 kg)
(1) For hard drive capacity measurements, 1GB = 1 billion bytes; actual formatted capacity less.
(2) Maximum capacity of 750GB achieved through use of three 250GB Apple Drive Modules.
(3) Actual rates will vary.
(4) Weight varies by configuration and manufacturing process.
Product specifications are subject to change without notice.
* WebObjects Deployment, NetBoot for Mac OS 9 clients, and Macintosh Manager software not included with Xserver cluster configuration.

. . .
-
